| 品牌：Schiedrum Hydraulik | 型号：流量控制阀20DR400-4HM40 | 连接形式：对夹 |
| 驱动方式：电磁 | 流动方向：单向 |

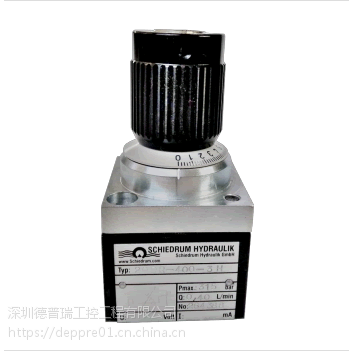

Schiedrum hydraulik 流量控制阀 20DR 400-4HM40
2-way flow control valves are flow valves (thrOTTle valves) with integrated pressure compensation. These valves control
an adjustable volume flow independently of pressure changes in the inlet or outlet line.They can be mounted in the inlet
or outlet side of the consumer. Due to the design of the orifice, the valve 20 D works almost independent of fluid viscosity.
产品特点：
hole pattern according to Schiedrum-standard
13 nominal volume flow ranges up to 16 l/min
scaled rotary knob control, setting angle 150°
control knob can be locked optionally – VW locking E 10
with by-pass check valve
standard sealing material Buna N/NBR, other materials possible
for volume flow control in both flow directions, volume flow rectifier
plate type 71 can be delivered
